PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

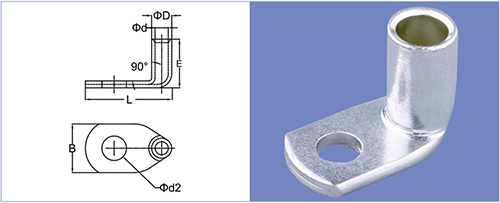

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

HUP6M5D90

HUP90°6-5

5.3

10

22.5

6.5

3.5

14

HUP6M6D90

HUP90°6-6

6.4

12

24.5

HUP6M8D90

HUP90°6-8

8.4

15

27.5

HUP6M10D90

HUP90°6-10

10.5

16

29.5

HUP10M5D90

HUP90°10-5

5.3

12

23

7

4.5

16

HUP10M6D90

HUP90°10-6

6.4

12

24

HUP10M8D90

HUP90°10-8

8.4

15

28

HUP10M10D90

HUP90°10-10

10.5

18

29.5

HUP16M5D90

HUP90°16-5

5.3

12

22.5

8.5

5.5

20

HUP16M6D90

HUP90°16-6

6.4

14

24

HUP16M8D90

HUP90°16-8

8.4

15

28

HUP16M10D90

HUP90°16-10

10.5

18

31

HUP16M12D90

HUP90°16-12

13

19

32

HUP25M6D90

HUP90°25-6

6.4

15

27.5

10

6.9

21

HUP25M8D90

HUP90°25-8

8.4

16

32.5

HUP25M10D90

HUP90°25-10

10.5

18

32.5

HUP25M12D90

HUP90°25-12

13

19

33.5

HUP35M6D90

HUP90°35-6

6.4

17

28.5

12

8.5

24

HUP35M8D90

HUP90°35-8

8.4

17

34

HUP35M10D90

HUP90°35-10

10.5

20

34

HUP35M12D90

HUP90°35-12

13

22

40.5

HUP50M6D90

HUP90°50-6

6.4

20

37

14

10

28.5

HUP50M8D90

HUP90°50-8

8.4

20

40.5

HUP50M10D90

HUP90°50-10

10.5

20

40.5

HUP50M12D90

HUP90°50-12

13

23

42.5

HUP50M16D90

HUP90°50-16

17

28

50.5

HUP70M8D90

HUP90°70-8

8.4

24

43

16.5

12

31

HUP70M10D90

HUP90°70-10

10.5

24

43

PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

HUP70M12D90

HUP90°70-12

13

24

44.5

16.5

12

31

HUP70M16D90

HUP90°70-16

17

28

53

HUP70M20D90

HUP90°70-20

21

30

59

HUP95M8D90

HUP90°95-8

8.4

26

44.5

18

13.5

35

HUP95M10D90

HUP90°95-10

10.5

26

44.5

HUP95M12D90

HUP90°95-12

13

26

46.5

HUP95M16D90

HUP90°95-16

17

28

52

HUP95M20D90

HUP90°95-20

21

30.5

59

HUP120M10D90

HUP90°120-10

10.5

29

49

19.5

15

35.5

HUP120M12D90

HUP90°120-12

13

29

49

HUP120M16D90

HUP90°120-16

17

29

55

HUP120M20D90

HUP90°120-20

21

30.5

61

HUP150M10D90

HUP90°150-10

10.5

31

48

21

16.5

40

HUP150M12D90

HUP90°150-12

13

31

51

HUP150M16D90

HUP90°150-16

17

31

56

HUP150M20D90

HUP90°150-20

21

34

61.5

HUP185M12D90

HUP90°185-12

13

35

58.5

24

19

46

HUP185M16D90

HUP90°185-16

17

35

58.5

HUP185M20D90

HUP90°185-20

21

35

65

HUP240M12D90

HUP90°240-12

13

40

54

26

21

50

HUP240M16D90

HUP90°240-16

17

40

60

HUP240M20D90

HUP90°240-20

21

40

67.8

HUP300M12D90

HUP90°300-12

13

43

74.5

29.5

23.5

59

HUP300M16D90

HUP90°300-16

17

43

64

HUP300M20D90

HUP90°300-20

21

43

70.5

HUP400M12D90

HUP90°400-12

13

49

79

34

27

62

HUP400M16D90

HUP90°400-16

17

49

68.5

HUP400M20D90

HUP90°400-20

21

49

75
